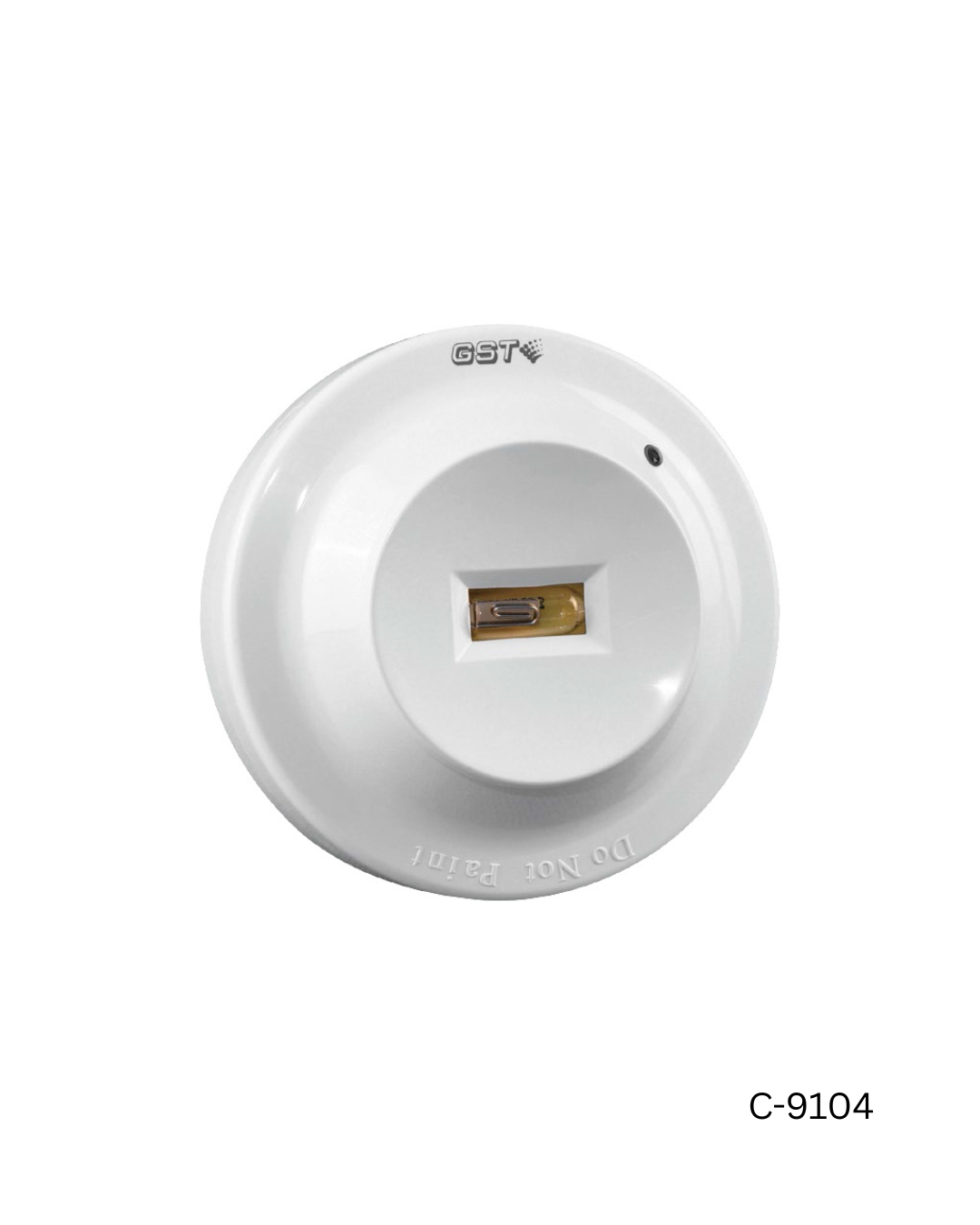

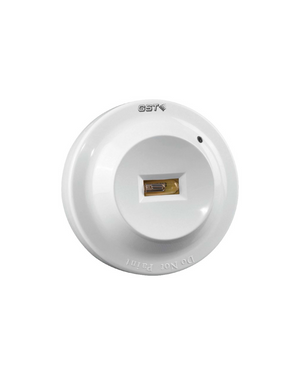

Ultraviolet Flame Detector | GST C-9104
Ultraviolet Flame Detector | GST C-9104
The C-9104 Conventional Ultraviolet Flame Detector is a non-addressable fire detection device. Together with an active end of line unit (AEOL), it can be connected to compatible control panels to build a fire detection system. It shows fire alarm via LED indicators and transmits the fire signal to the control panel. The C-9104 detects fire by analyzing ultraviolet radiation of material flaming, making it applicable to places with open fire, intense flame radiation, and fires without a smoldering stage — as well as places requiring a quick response to fire.
Features & Benefits
- Excellent UV sensor for high sensitivity flame detection
- High sensitivity, reliable performance, dust-proof, damp-proof, and corrosion-proof
Technical Specification
| Operating Voltage | 24VDC (16VDC ~ 28VDC) |
| Standby Current | ≤1.6mA |
| Alarm Current | ≤38mA |
| Sensitivity | 3cm flame from 6 meters distance |
| Indicator | Red. Flashes in standby condition, illuminates steadily in alarm |
| Detection Angle | ≤80° |
| Operating Temperature | -20°C ~ +50°C |
| Relative Humidity | ≤95%, non-condensing |
| Dimension | Diameter: 103mm, Height: 53.5mm (with base) |
| Enclosure | ABS, white (RAL 9016) |
| Weight | About 112g |
| Mounting Hole Distance | 45mm ~ 75mm |
Certificates & Compliance
- Note: the detector should be connected with a fire alarm control panel or other device with current-limit function to avoid damage from excessive alarm current
Compatible Products
- GST102A – GST116A Conventional Panels
- I-9319 Zone Monitor Module
Accessories & Tools
- DZ-03 — Standard Base (Product No. 30204898)
- DZ-03D — Diode Base (Product No. 20101136)
- P-9907 — Active End of Line (Product No. 10102406)
Part No.: C-9104 · Product No.: 10102430
