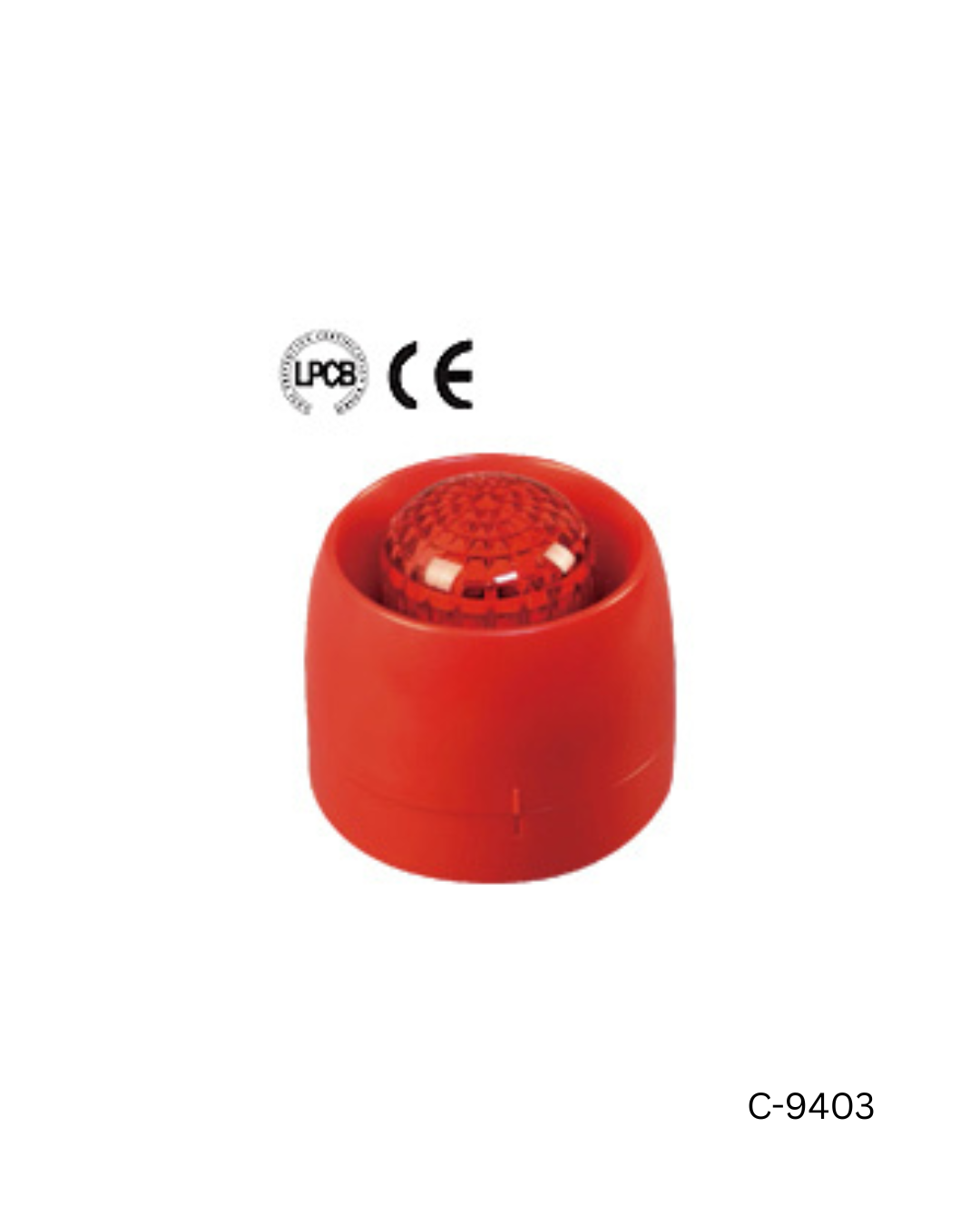

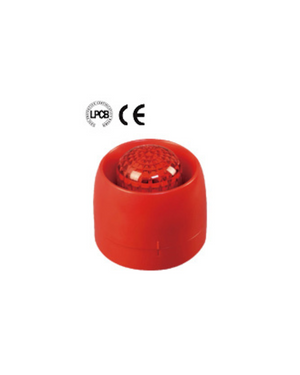

Conv. Sounder Strobe | GST C-9403
Conv. Sounder Strobe | GST C-9403
C-9403 Conventional Sounder Strobe is an audible and visual notification device. In case of a fire condition, the sounder strobe generates a strong audible and visual alarm signal to warn people to evacuate the building.
Features & Benefits
- Strobe provided by a high intensity LED cluster
- 2 selectable tones
- LPCB approved
- Standard: EN 54-3
Technical Specification
| Operating Voltage | Power: 24VDC (20V~28V) |
| Operating Current | Start current ≤35mA |
| Flash Frequency | 2.0×(1±20%)Hz |
| Sound Level | Tone 1 and Tone 2: not lower than 95dB (at 1m distance) |
| Ingress Protection Rating | IP33C |
| Operating Temperature | -10°C ~ +50°C |
| Relative Humidity | ≤95%, non-condensing |
| Material of Enclosure | ABS |
| Dimension (D×H) | φ110mm×110.4mm (deep base) / φ110mm×95.9mm (shallow base) |
| Mounting Hole Spacing | 55mm ~ 80mm |
| Weight | About 355g (deep base) / About 327.2g (shallow base) |
Certificates & Compliance
- Standards: EN54-3
- Certifications: LPCB
Compatible Products
- GST102A – GST116A Conventional Panels
- I-9301 Addressable Single Output Module
- DI-9305E Digital Single Riser Output Module
Accessories & Tools
- C-94DB — Deep Base (Product No. 30203792)
Part No.: C-9403 · Product No.: 10106299
