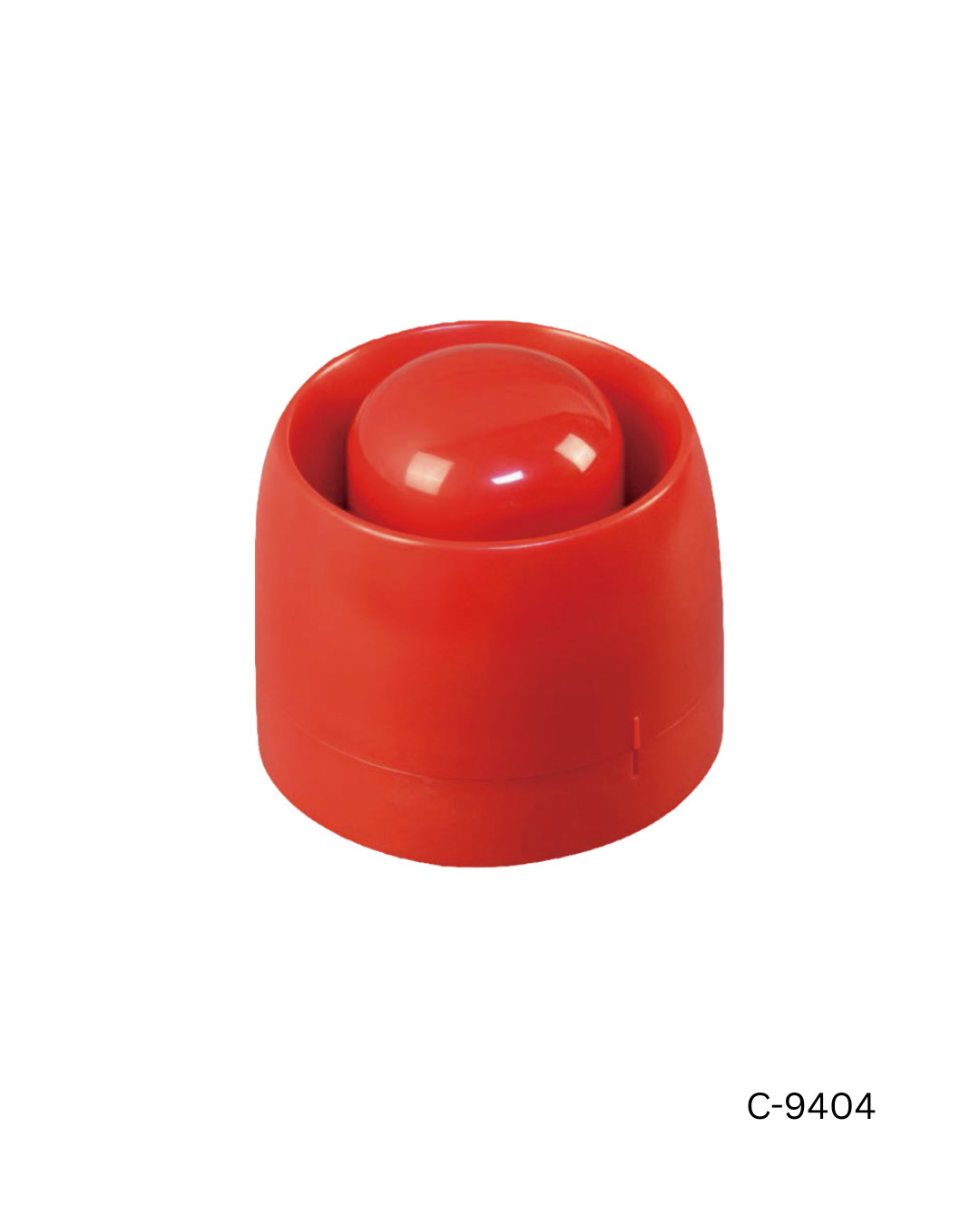

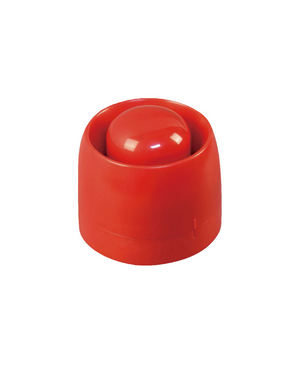

Conv. Sounder | GST C-9404
Conv. Sounder | GST C-9404
C-9404 Conventional Sounder is an audible notification device. In case of a fire condition, the sounder generates a strong audible alarm signal to warn people to evacuate the building.
Features & Benefits
- 2 selectable tones
- LPCB approved
- Standard: EN 54-3
Technical Specification
| Operating Voltage | Power: 24V (20V~28V) |
| Operating Current | Start current ≤35mA |
| Power Consumption | 0.84W |
| Indoor Application | Type A |
| Sound Level | Tone 1 and Tone 2: minimum sound level 95dB (1 meter in front) |
| Ingress Protection Rating | IP33C |
| Operating Temperature | -10°C ~ +50°C |
| Relative Humidity | ≤95%, non-condensing |
| Material and Color of Enclosure | ABS, red |
| Dimension (D×H) | φ110mm×110.4mm (deep base) / φ110mm×95.9mm (shallow base) |
| Mounting Hole Spacing | 55mm ~ 80mm |
| Weight | About 355g (deep base) / About 327.2g (shallow base) |
Certificates & Compliance
- Standards: EN54-3
- Certifications: LPCB
Compatible Products
- GST102A – GST116A Conventional Panels
- I-9301 Addressable Single Output Module
- DI-9305E Digital Single Riser Output Module
Accessories & Tools
- C-94DB — Deep Base (Product No. 30203792)
Part No.: C-9404 · Product No.: 10104816
