Conv. Gas Detector | GST C-9602LW-NG
Conv. Gas Detector | GST C-9602LW-NG

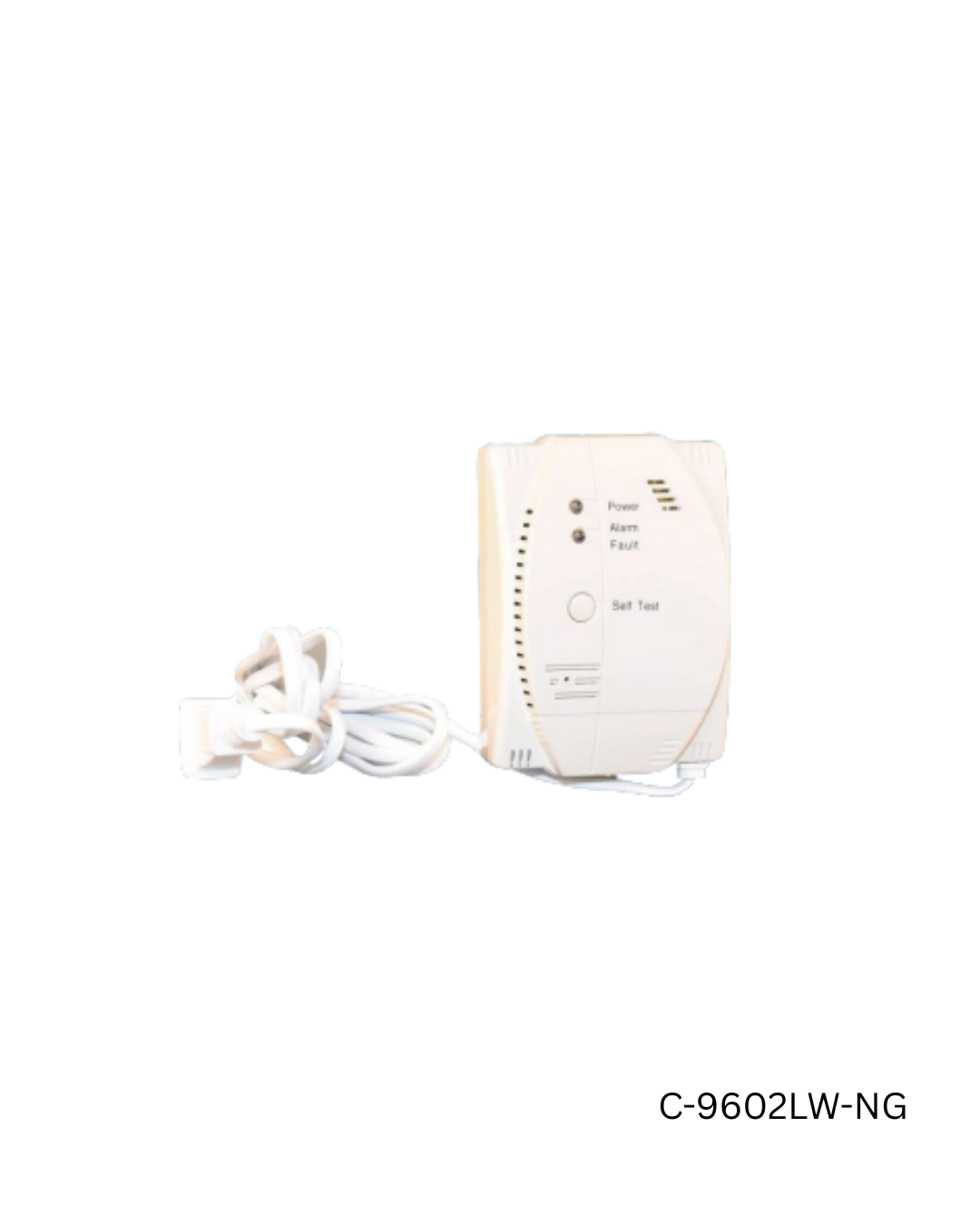

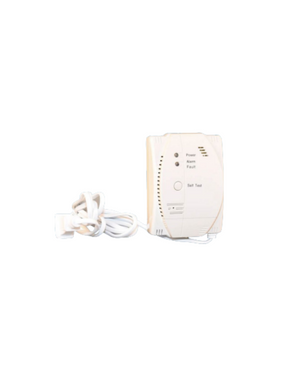

C-9602LW-NG Conventional Gas Detector is a wall-mounted device designed to check and monitor natural gas leakage in applications such as houses, hotels, and apartments.
Features & Benefits
- Wall-mounted design for easy installation near gas sources
- Dual-color Alarm/Fault LED — red when alarming, yellow in fault
- Audible buzzer — sounds twice per second when alarming, once every three seconds in fault
- Self-Test button — LEDs flash in turn with buzzer sounding three times
- Voltage contact output for driving a 12VDC solenoid valve
- Volt-free normally open contact for controlling connected devices
- Sensor life: 5 years
Technical Specification
| Operating Voltage | 187VAC ~ 253VAC |
| Power Consumption | Standby ≤3.0W / Alarm ≤5.0W |
| Output Capacity | Voltage contact: 12VDC one-way pulse solenoid, driving capability of 1000μF capacitance discharge. Volt-free contact: normally open, 220V/1A |
| Alarm Set Point | Natural gas: 3000×10⁻⁶ (6% LEL) |
| Indicator | Power LED: Green, flashes during warm-up then lights constantly. Alarm/Fault LED: dual color — red in alarm, yellow in fault |
| Buzzer | Sounds twice per second when alarming, once every three seconds in fault |
| Sensor Life | 5 years |
| Operating Environment | -10°C ~ +50°C, ≤95% relative humidity, non-condensing |
| Dimension | 121mm × 87mm × 47mm |
| Ingress Protection Rating | IP30 |
| Material and Color of Enclosure | ABS, ivory white |
| Weight | 320g |
| Mounting Hole Distance | 23mm |
Installation Notes
- Should be installed in the same room as the gas source, mounted above 50cm from the source (natural gas rises and gathers overhead)
- Should be within 1.5m ~ 4m of the gas source or stove
- Avoid locations affected by exhaust, steam, oil smoke, strong airflow, high humidity, or temperature extremes
Part No.: C-9602LW-NG · Device Name: Conventional Gas Detector
