GST DC-9103E Conventional Rate of Rise and Fixed Temperature Heat Detector
GST DC-9103E Conventional Rate of Rise and Fixed Temperature Heat Detector

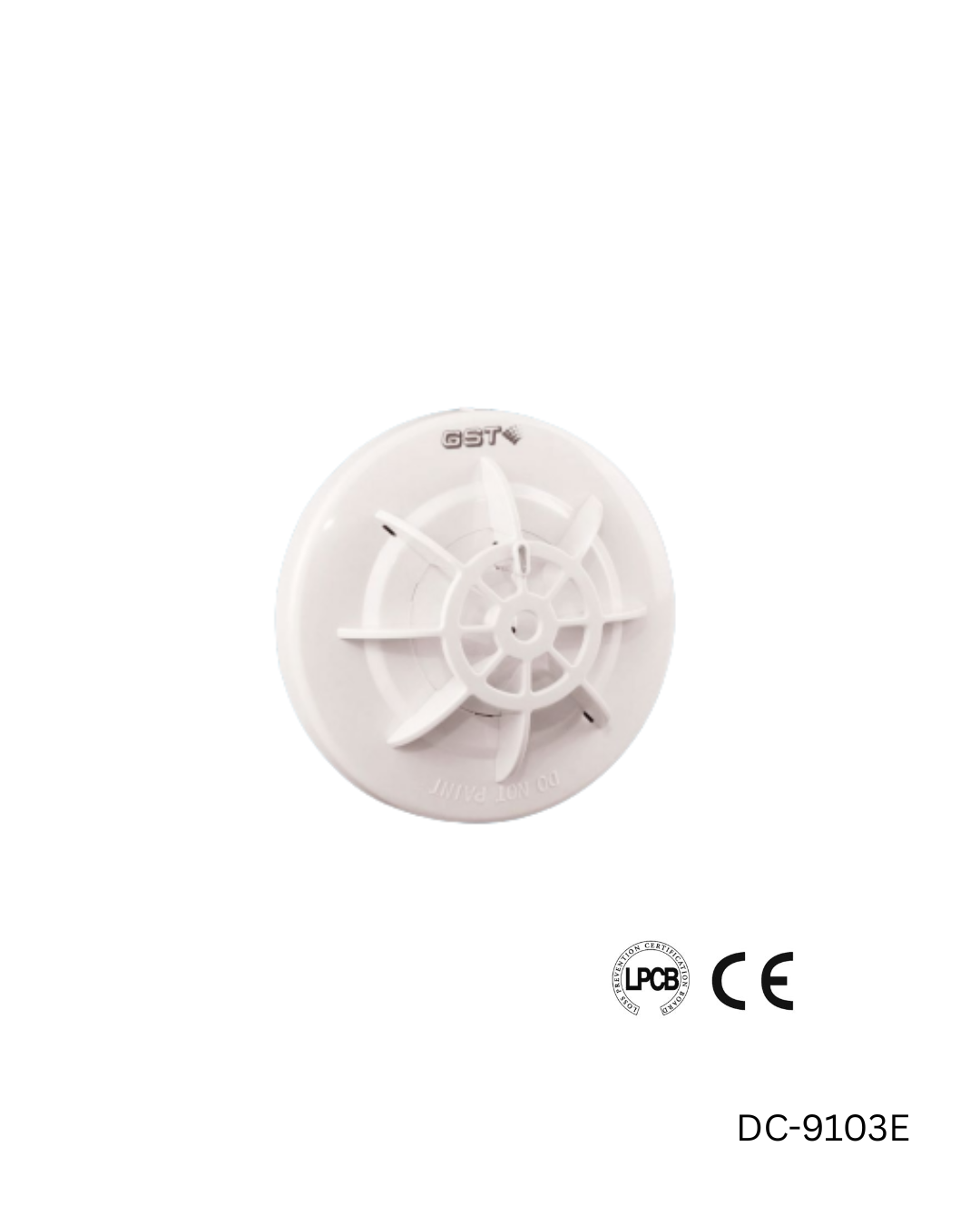

The DC-9103E is a Conventional Rate of Rise and Fixed Temperature Heat Detector that builds up a fire alarm system together with a fire alarm panel and other alarm devices. The detector shows fire alarm via the LED indicator and transmits the signal to the FACP.
Features & Benefits
- Self-diagnostic
- Reed switch test
- Fire LED allows 360° viewing
- Possible to switch off polling LED
- Remote indicator output
- 3 classes programmable
- LPCB approved at EN54-5
Technical Specification
| Operating Voltage | 24V (16V ~ 28V) |
| Standby Current | ≤60μA |
| Alarm Current | ≤55mA |
| Wiring | Polarized 2-core for zone; polarized 2-core for remote indicator |
| Alarm Reset | Instantaneous cut-out (10s min, 1.0VDC max.) |
| Class and Setup | Classes A1R, A2S, BS |
| Typical Fixed Temperature | Class A1: 58°C / Class A2: 62°C / Class B: 77°C |
| Environment Temperature | Class A1: -10°C ~ +50°C / Class A2: -10°C ~ +50°C / Class B: -10°C ~ +65°C |
| Relative Humidity | ≤95%, non-condensing |
| Material of Enclosure | ABS |
| Ingress Protection Rating | IP2X |
| Dimensions | Diameter: 100mm, Height: 54.5mm (with base) |
| Mounting Hole Distance | 45mm ~ 75mm |
| Weight | About 110g |
Certificates & Compliance
- Standards: EN54-5
- Certifications: LPCB
Compatible Products
- GST102A ~ GST116A Conventional Panels
- I-9319 Zone Monitor Module
Accessories & Tools
- DB-01 — Standard Base (Product No. 30205764)
- DB-01D — Diode Base (Product No. 20101432)
- C-9314P — Remote Indicator (Product No. 10102339)
- DP-9907 — Active End of Line (Product No. 10103044)
- P-9910B — Handheld Programmer (Product No. 10104894)
Part No.: DC-9103E · Product No.: 10106288
