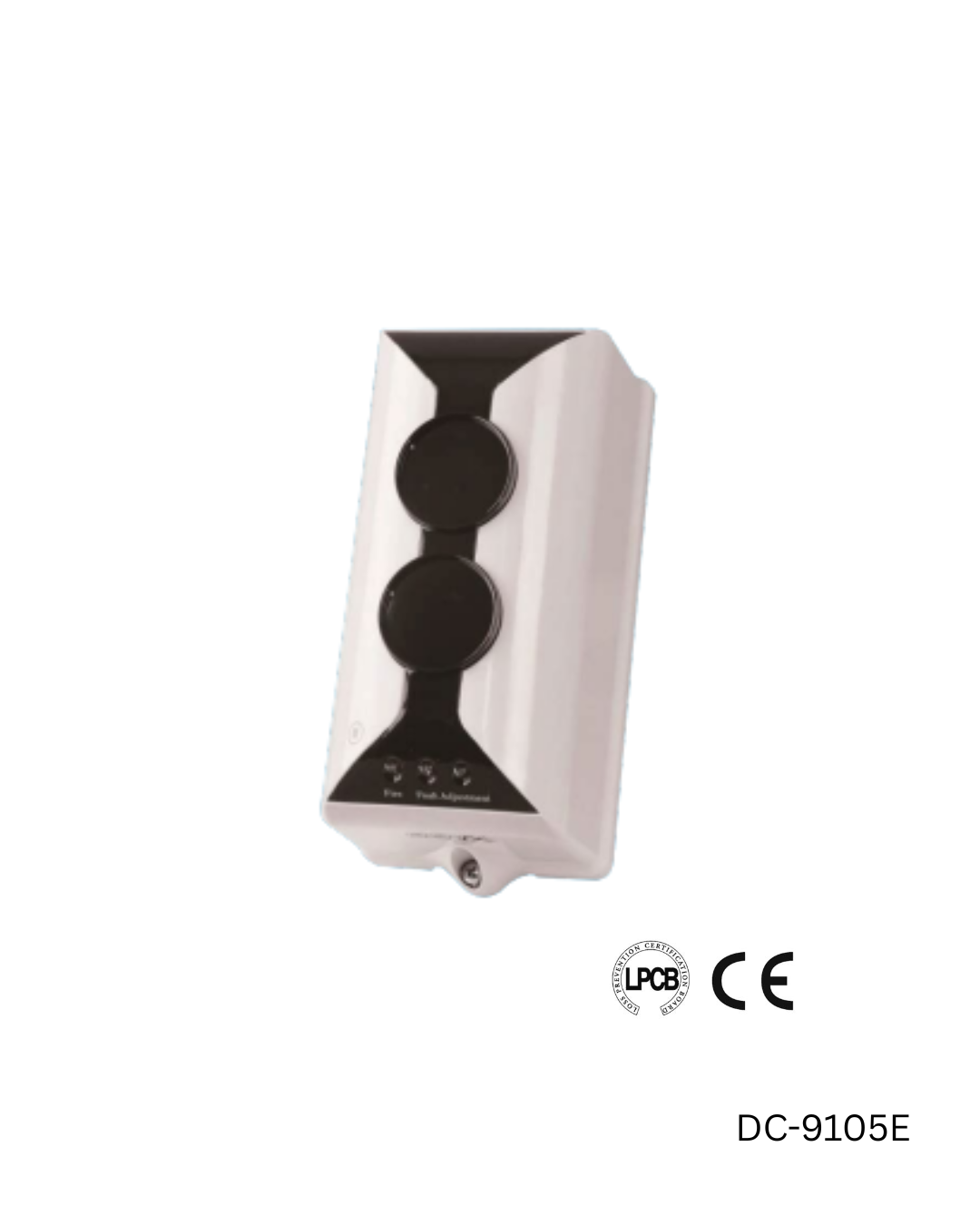

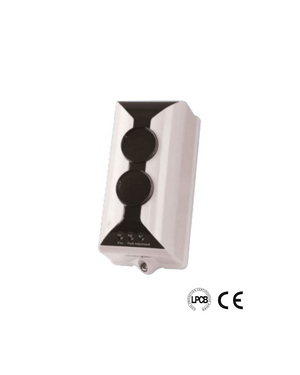

Conv. Reflective Beam Detector | GST DC-9105E
Conv. Reflective Beam Detector | GST DC-9105E
DC-9105E is a conventional reflective beam detector powered by 24V, with an excellent built-in microprocessor that carries out system adjustment, drift compensation of ambient data, and judgment of fire and fault through a fixed algorithm. The detector has an integral visible laser pointer and a 2-digit digital tube, making it easy to install and align with the reflector, and convenient for commissioning with indications of received light intensity. Sensitivity can be set through a handheld programmer in the field, suitable for large storage zones, shopping malls, fitness centers, gyms, exhibition halls, hotel lobbies, and areas with complex ceilings.
Features & Benefits
- 24V powered, wide operating voltage range, large monitoring areas
- Combination of the emitting and receiving parts makes mounting easy and the optical pathway accurate
- Built-in microprocessor enables intelligent judgment of fire alarm and fault
- Easy alignment and commissioning via onboard laser pointer and digital signal intensity indication
- Self-diagnostic function monitors internal faults
- Drift compensation for factors such as dust accumulation, positional excursion, and ageing transmitter
- Onboard N/O fire output and N/C fault dry contact output
- Four sensitivity levels can be set in the field
Technical Specification
| Operating Voltage | DC 24V (18V~28V) |
| Commission Current | ≤20mA |
| Standby Current | ≤12mA |
| Alarm Current | ≤22mA |
| Angle of Adjusting | -6° ~ +6° |
| Maximum Angular Misalignment | ±0.5° |
| Sensitivity Level | Level 1: 1.3dB / Level 2: 1.8dB (factory default) / Level 3: 2.3dB / Level 4: 2.8dB (not EN 54-12: 2015 approved) |
| Operating Environment | -10°C ~ +50°C, ≤95% non-condensing |
| Length of Optical Pathway | 5m ~ 100m |
| Monitoring Area | Maximum monitoring area: 14 × 100 = 1400m² / Maximum width: 14m |
| Material and Color of Enclosure | ABS, Gray |
| Dimensions | 206mm × 95mm × 95mm |
| Ingress Protection Rating | IP20 without glue-seal / IP66 through glue-seal treatment |
| Weight | 450g |
Certificates & Compliance
- Standards: EN 54-12: 2015
- Certifications: LPCB
Accessories & Tools
- RF-9105R — Reflector (Product No. 20103590)
- Bracket — Mounting Bracket (Product No. 30202359)
- Non-reflective Mask (Product No. 20103775) — order separately
- P-9910B — Handheld Programmer (Product No. 10104894) — order separately
Part No.: DC-9105E · Product No.: 10106205
