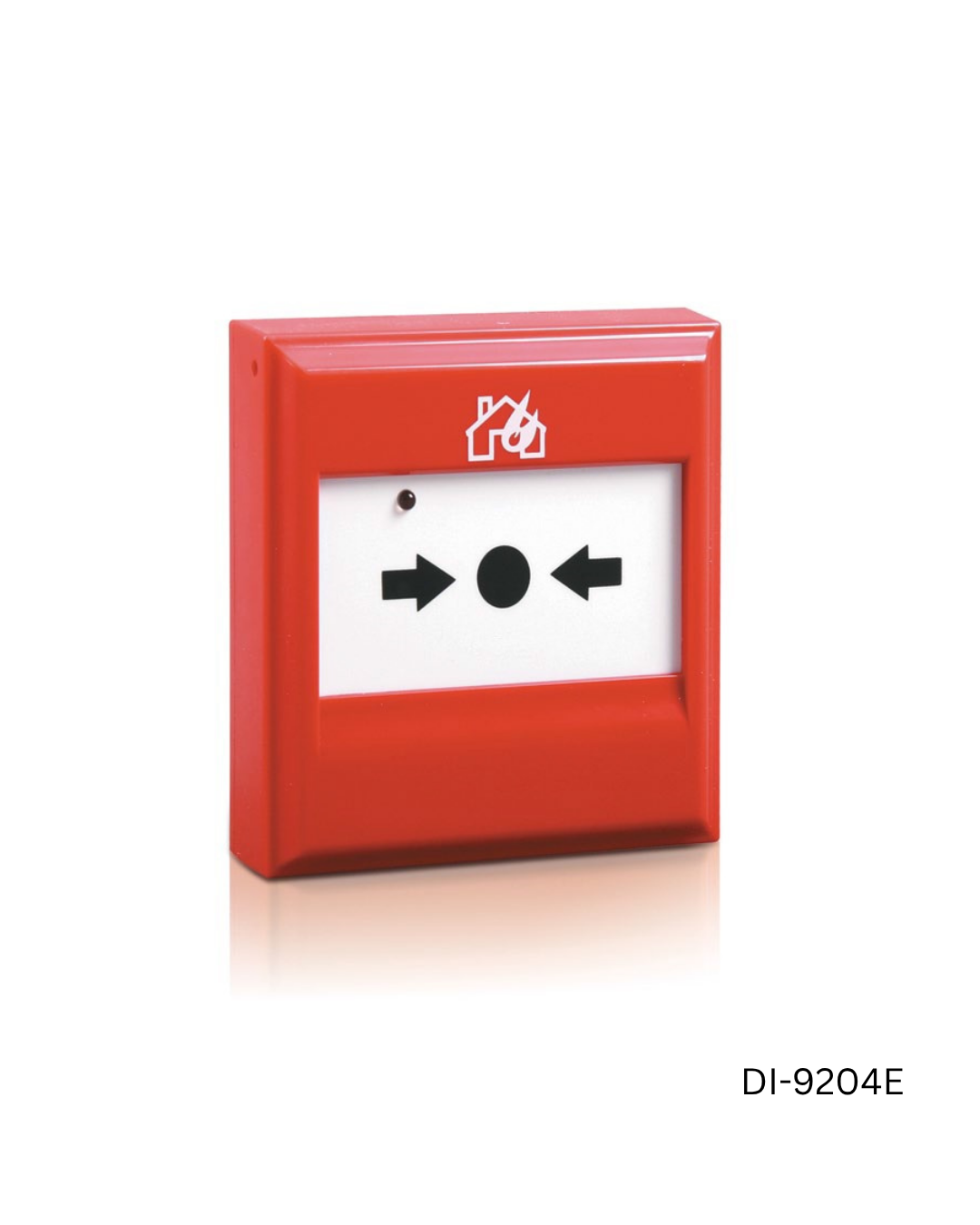

GST DC-9204E Innovation Manual Call Point
GST DC-9204E Innovation Manual Call Point
The DC-9204E Innovation Manual Call Point (MCP) is a non-addressable device that alarms by pressing the glass. It can be simply connected to compatible conventional fire alarm systems from various manufacturers, and is suitable for public places. When there is a fire, pressing the glass on this MCP sends an alarm signal to a compatible conventional fire alarm control panel.
Features & Benefits
- Alarming by pressing, reset by a special key
- Plug-in structure
- Certified by LPCB for EN54-11
Technical Specification
| Operating Voltage | 24VDC (12VDC ~ 28VDC) |
| Standby Current | 0mA |
| Alarm Current | ≤30mA (equivalent resistance 470Ω 1/2W) |
| Indicator | Red. Illuminates after alarm |
| Type of Initiating Part | Reusable |
| Initiating Mode | Pressing the glass manually |
| Resuming Mode | Manually resumed by a special key |
| Wiring | Two-wire |
| Ingress Protection Rating | IP43 |
| Environmental Temperature | -10°C ~ +50°C |
| Relative Humidity | ≤95%, non-condensing |
| Material of Enclosure | ABS |
| Dimension (L×W×H) | 87.1mm×87.1mm×58mm (with back box) |
| Mounting Hole Distance | 60mm |
| Weight | About 160g (with back box) |
Certificates & Compliance
- Standards: EN54-11
- Certifications: LPCB
- Note: cannot be connected directly to 24VDC power — must be connected to a compatible power-limited fire alarm control panel (28VDC/60mA max.)
Compatible Products
- GST102A ~ GST116A Conventional Panels
- I-9319 Zone Monitor Module
Accessories & Tools
- D-92FC — Flip Cover (Product No. 30206356)
- D-92WPB — Water Proof Box (Product No. 30206520)
Part No.: DC-9204E · Product No.: 10106301
