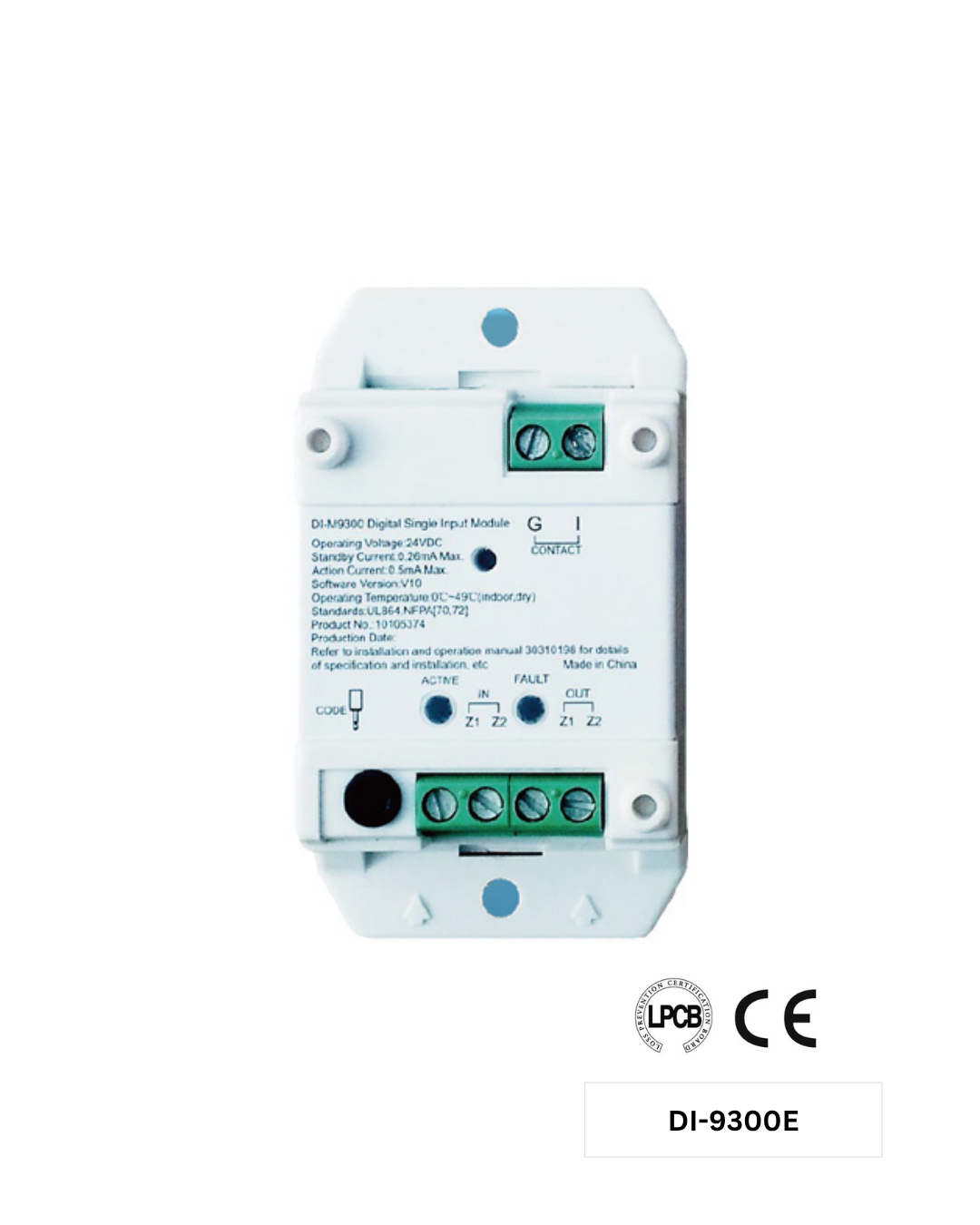

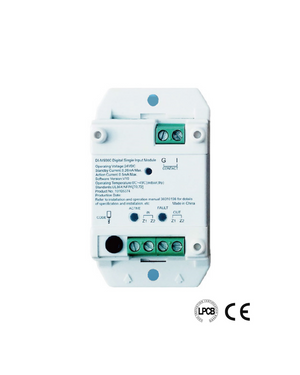

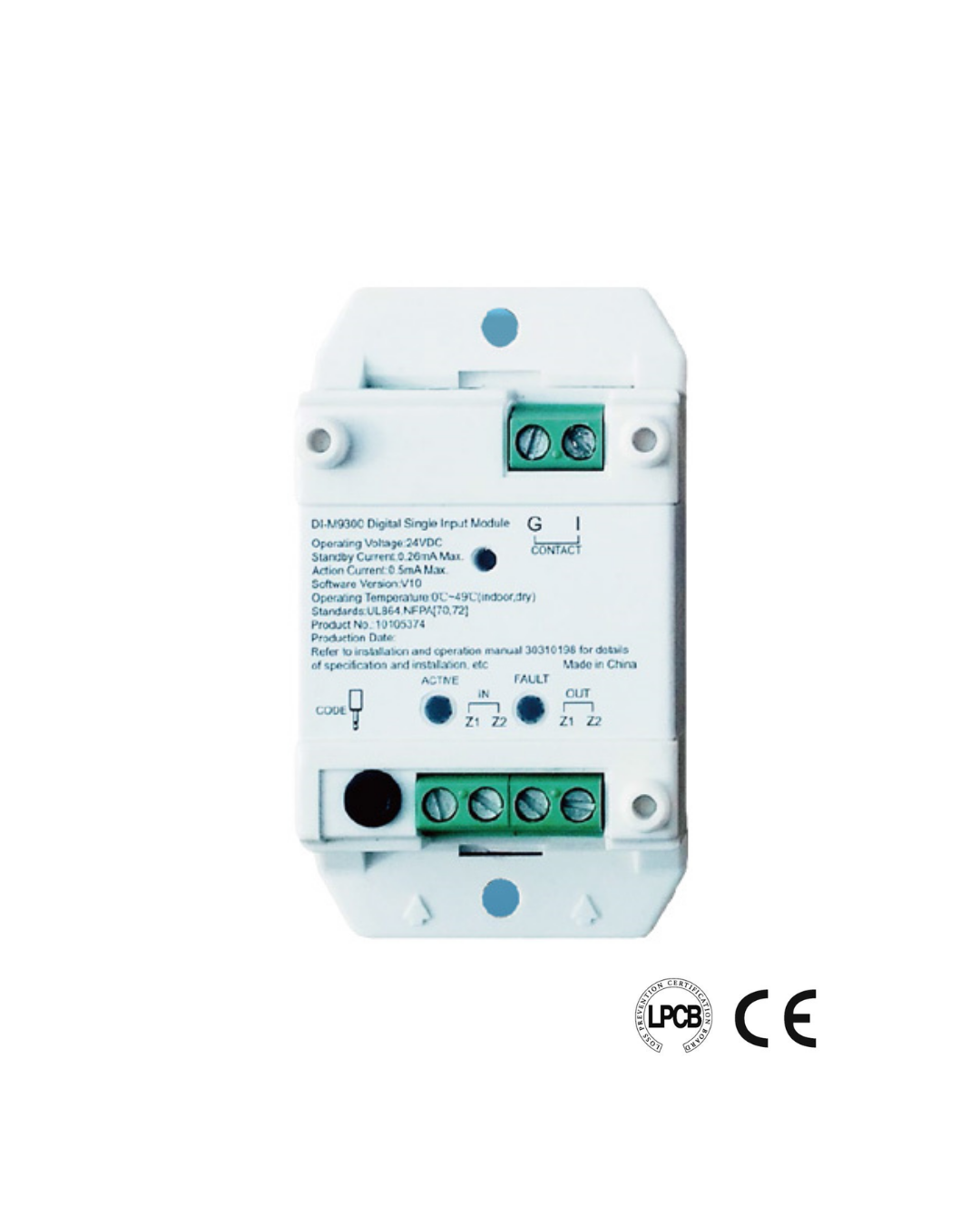

Digital Single Input Module | GST DI-9300E
Digital Single Input Module | GST DI-9300E
DI-9300E Digital Single Input Module is used for receiving a normally open or normally closed switch signal (dry contact) and transmitting it to the fire alarm control panel (FACP) through a signaling line circuit (SLC) loop. The FACP then generates an active message and displays the address of the module. By cable monitoring, the module can transmit a fault message to the FACP when the input loop is broken, and the FACP will display the address of the module.
Features & Benefits
- Input port monitored with 4.7KΩ EOLR
- Normally open or normally closed contact acceptable
- Electronically addressed — address can be modified in the field
- Built-in microprocessor and AD sampling technology
- Rail mount or surface mount
Technical Specification
| Operating Voltage | Loop 24VDC (16VDC - 28VDC), Power Limited |
| Standby Current | ≤0.26mA |
| Action Current | ≤0.5mA |
| Programming | Electronically addressing |
| Address Range | 1 address, from 1 to 242 |
| Ingress Protection Rating | IP30 |
| Operating Temperature | -10°C ~ +55°C |
| Relative Humidity | ≤95%, non-condensing |
| Material and Color of Enclosure | ABS, white (RAL9016) |
| Dimension (L×W×H) | 78mm×45.3mm×28.5mm |
| Weight | About 36.8g |
Certificates & Compliance
- Standards: EN 54-18:2005
- Certifications: CE, LPCB
- WEEE & RoHS Compliant
Compatible Products
- GST-M200N Intelligent Fire Panel
- GST-IFP8 Intelligent Fire Panel
Accessories & Tools
- P-9910B — Handheld Programmer (Product No. 10104894)
- GST-MBX22 — Module Box (Product No. 30208656)
- GST-MBX29 — Module Box (Product No. 30208657)
- D-93CT1 — Din-rail Module Transparent Cover 1U (Product No. 20103182)
Part No.: DI-9300E
Product No.: 10105506
