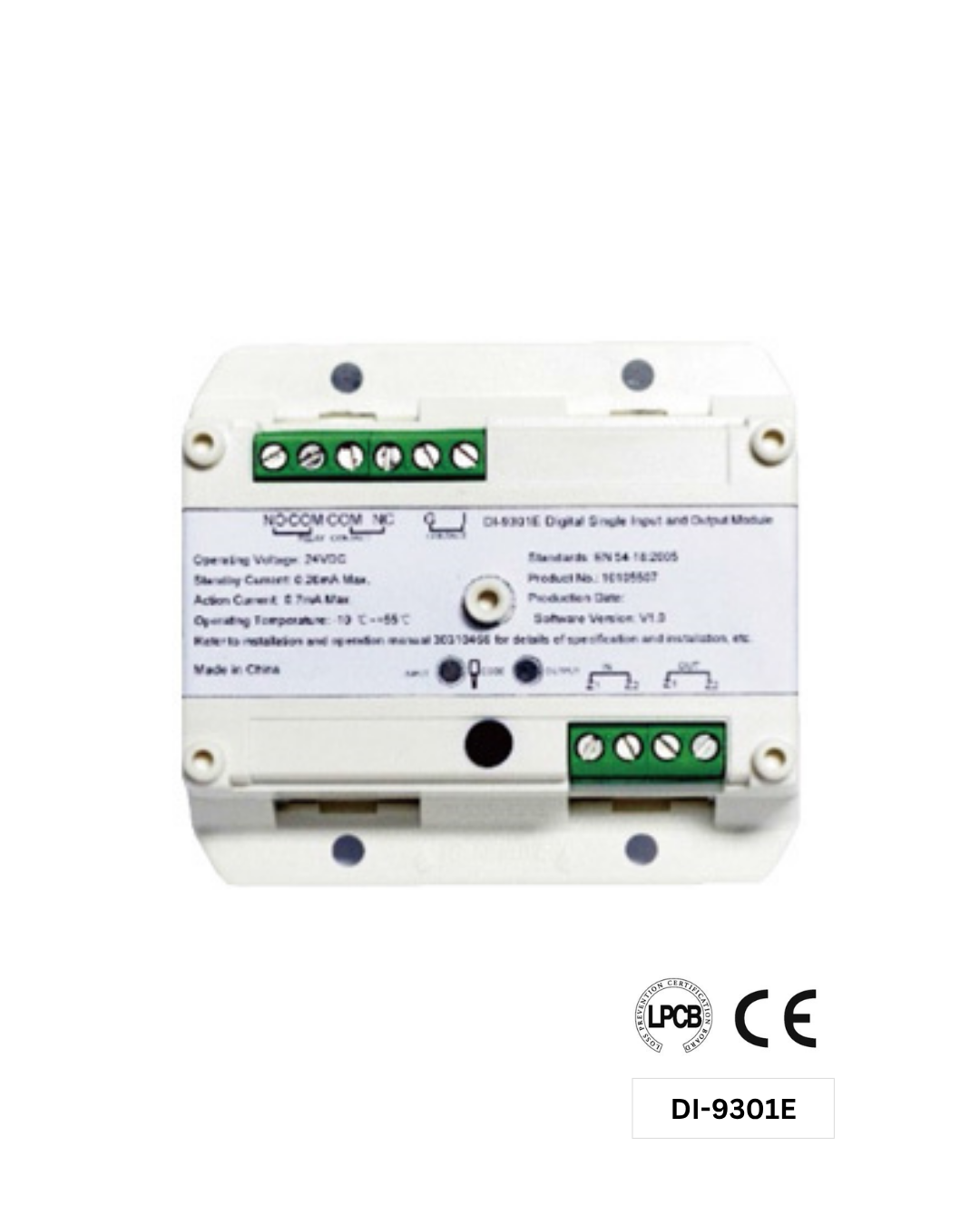

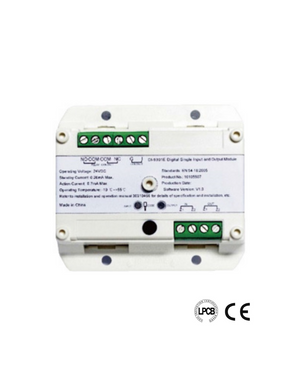

Digital Single Input and Output Module | GST DI-9301E
Digital Single Input and Output Module | GST DI-9301E
DI-9301E Digital Single Input and Output Module provides a dry contact output (normally open and/or normally closed) following a command from the fire alarm control panel, and can also receive a switch signal (dry contact) from field equipment and transmit it to the FACP. The input and output can be programmed to monitor and control the same or different equipment.
Features & Benefits
- Input port monitored with 4.7KΩ EOLR
- Normally open or normally closed contact input signal acceptable
- Input port co-operates with output or works individually
- Electronically addressed — addresses can be modified in the field
- Built-in microprocessor and AD sampling technology
- Rail mount or surface mount
Technical Specification
| Operating Voltage | Loop 24VDC (16VDC - 28VDC), Power Limited |
| Standby Current | ≤0.26mA |
| Action Current | Loop ≤0.7mA |
| Output Capacity | 2A @ 30VDC, Normally-open/Closed |
| Programming | Electronically addressing |
| Address Range | 1 address, from 1 to 242 / 2 addresses, from 1 to 241 |
| Ingress Protection Rating | IP30 |
| Operating Temperature | -10°C ~ +55°C |
| Relative Humidity | ≤95%, non-condensing |
| Material and Color of Enclosure | ABS, white (RAL9016) |
| Dimension (L×W×H) | 85.3mm×78mm×33mm |
| Weight | About 66.5g |
Certificates & Compliance
- Standards: EN 54-18:2005
- Certifications: LPCB, CE
- WEEE & RoHS Compliant
Compatible Products
- GST200N series Intelligent Fire Panel
- GST-IFPx series Intelligent Fire Panel
Accessories & Tools
- P-9910B — Handheld Programmer (Product No. 10104894)
- GST-MBX22 — Module Box (Product No. 30208656)
- GST-MBX29 — Module Box (Product No. 30208657)
- D-93CT2 — Din-rail Module Transparent Cover 2U (Product No. 20103183)
Part No.: DI-9301E
Product No.: 10105507
