Ad. Sounder Strobe | GST I-9403
Ad. Sounder Strobe | GST I-9403

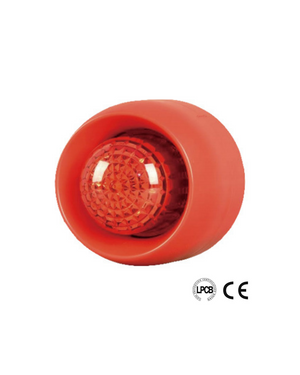

I-9403 Addressable Sounder Strobe is an audible and visual alarm device installed in the field, activated by the fire alarm control panel in the fire control center. Once activated, it generates a strong audible and visual alarm signal to warn people in the field.
Features & Benefits
- Providing 16 tones
- Ultra bright LEDs as light source (optional transparent colorless lens C-94WL available)
- Loop powered or external 24V powered
- Power-saving consumption mode and normal consumption mode (factory default)
- Single/dual address programmable
- Working modes: sounder & strobe / strobe only / sounder only
- Standard: EN 54-3
Technical Specification
| Operating Voltage | Loop: 24V (20V~28V) / Power: 24V (20V~28V) |
| Flash Frequency | Single address: 1.4×(1±20%) Hz / Dual addresses: 0.7×(1±20%) Hz first address, 1.4×(1±20%) Hz second address |
| Programming Method | Single / dual address |
| Programming Range | 1~242 |
| Ingress Protection Rating | IP33 |
| Operating Temperature | -10°C ~ +50°C |
| Relative Humidity | ≤95%, non-condensing |
| Material of Enclosure | ABS |
| Dimension (D×H) | φ110mm×110.4mm (deep base) / φ110mm×95.9mm (shallow base) |
| Mounting Hole Spacing | 55mm ~ 80mm |
| Weight | About 355g (deep base) / About 327.2g (shallow base) |
Certificates & Compliance
- Standard: EN 54-3
- Certifications: LPCB
- Not approved to EN54-23 (Beacon Functionality) — must not be used as a visual alarm device or primary fire warning notification
Accessories & Tools
- C-94DB — Deep Base (order separately)
- C-94WL — Transparent Colorless Lens (order separately)
- P-9910B — Hand Held Programmer (order separately)
Part No.: I-9403
Doc No.: 30312237
