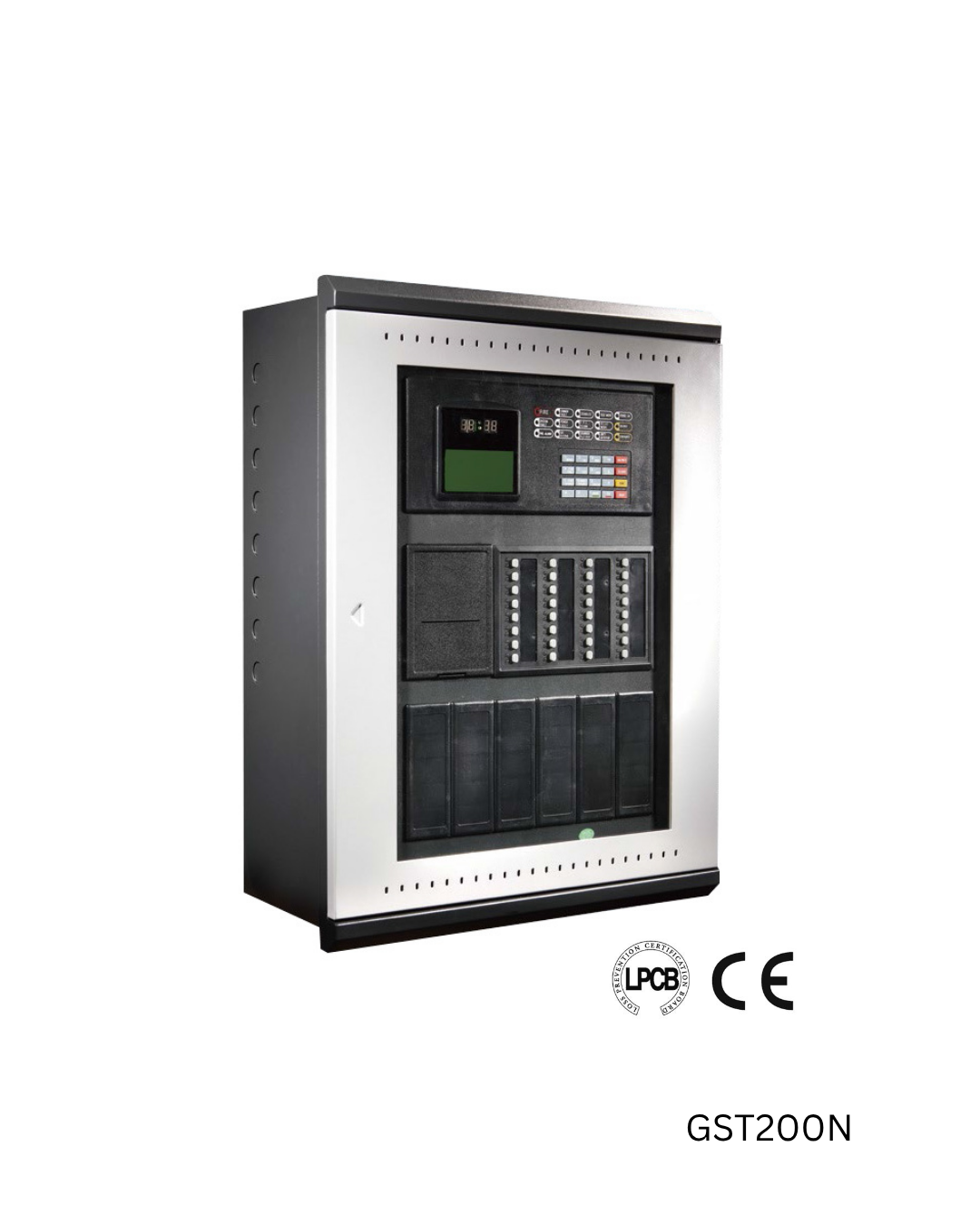

GST200N Series Intelligent Fire Alarm Control Panel
GST200N Series Intelligent Fire Alarm Control Panel
GST200N Intelligent Fire Alarm Control Panels are designed to comply with EN54-2 and EN54-4 standards, with qualities of simple installation, operation, and easy maintenance. The 1-2 loop addressable panel is suitable for small buildings like offices, restaurants, stores, and shops.
Features & Benefits
- Max. 30 zones — each zone has its own alarm and fault/disable indicator and a label
- Single loop panel capacity: 235 addressable devices
- 2-loop panel capacity: 477 addressable devices
- Compatible with GST intelligent and digital products
- 8×18 characters LCD screen
- 15 LEDs to display important information
- Non-volatile memory ensures no loss of data even if power supply is accidentally removed
- Wide range power supply
- Sounder strobe output provides 0.5A/24V load, compatible with GST conventional sounders
- RS232 interface enables communication with PC
- RS485 or CAN interface enables networking
Technical Specification
| Primary Supply | 100-240VAC, 50/60Hz |
| AC Current | 1.5A |
| Standby Power | 21AH/24VDC |
| Loop Capacity | 1 or 2 Loops |
| Zone Capacity | 30 |
| Device Capacity | 235 for 1st loop / 242 for 2nd loop |
| Printer | Optional Thermal ASCII code printer |
| Display | 8(lines) × 18(characters), LCD |
| Network (RS485) | Class A, Max. 32 panels (by card) |
| Network (CAN) | Class A, Max. 240 panels (by card) / Class B, Max. 240 panels (by card and other accessories) |
| PC Port | RS232/USB interface (by card) |
| Protection | IP30 |
| Operating Environment | 0°C ~ +40°C, ≤95% non-condensing |
| Dimension | 406(W) × 666(H) × 130(D) mm |
Certificates & Compliance
- Standards: EN54-2, EN54-4
- Certifications: LPCB
Compatible Devices
- DI-910xE Series Digital Intelligent Detector
- I-910x Series Intelligent Analogue Detector
- DI-9204E Addressable Manual Call Point
- I-930x Series Addressable Interfaces
- I-940x Series Addressable Sounders and Strobes
- C-950xE Series Line Isolators
- DC-9504E Base Mount Isolator
- I-960x Series Intelligent Combustible Gas Detectors
Accessories & Tools
- LC200 — Loop Card (Product No. 20101370)
- P-9930 — RS232 Communication Card (Product No. 20103426)
- P-9940A — RS485 Class A Network Card (Product No. 20100994)
- P-9960 — CAN Class B Network Card (Product No. 20101849)
- P-9960A — CAN Class A Network Card (Product No. 20103142)
- P-9930ModBus — ModBus Communication Card (Product No. 20101830)
- P-9930TCPIP — TCP/IP Interface Card (Product No. 20102319)
Part No.: GST200N-1 (single loop version) · Product No.: 10105118
