HSC 2000 GPM (8, 9.66, 10 Bar) Fire Fighting Pump Set (Diesel + Electric + Jockey)

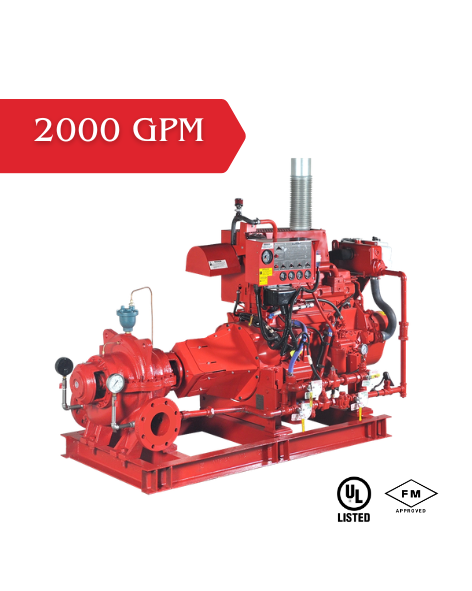

Lubi HSC 2000 GPM Fire Pump Set
The Lubi Horizontal Split Case (HSC) Fire Pump Set is a complete UL Listed and FM Approved fire protection package rated for 2000 GPM, available in multiple pressure ratings to match your project's requirements. Designed in accordance with NFPA 20, the set combines a diesel fire pump, electric fire pump, and jockey (make-up) pump on the same frame, along with automatic controllers and essential accessories for dependable fire protection in commercial and industrial installations.
Available Pressure Ratings
Select the pressure rating that matches your system design from the variant options above:
- 8 Bar
- 9.66 Bar
- 10 Bar
Diesel engine size, electric motor rating, and jockey pump specification vary by pressure rating. Once you select a variant, use the Download Submittal button to get the full technical datasheet for that specific configuration.
Key Features
- 2000 GPM rated flow across all pressure ratings
- UL Listed & FM Approved fire pump package
- Centrifugal fire pump design (LUBI Type HSC, model FLHC 250-200-315)
- Combined Diesel, Electric & Jockey pump configuration
- Automatic Tornatech controllers for diesel, electric, and jockey pumps
- Field-proven components from WIKA, Cla-Val, and SAICORP
- Easy maintenance design
Technical Specifications
| Brand | Lubi |
| Pump Type | Horizontal Split Case (HSC) Fire Pump, Model FLHC 250-200-315 |
| Rated Flow | 2000 GPM (all ratings) |
| Rated Pressure | 8 / 9.66 / 10 Bar (select variant) |
| Diesel Engine | Kirloskar, up to 249 HP @ 2900 RPM |
| Diesel Controller | Tornatech automatic diesel pump controller, 12V |
| Electric Motor | Lubi, up to 250 HP @ 2900 RPM, ODP enclosure, Class F insulation, 3-phase/50Hz/415V |
| Electric Controller | Tornatech automatic electric pump controller |
| Jockey Pump | Up to 100 GPM, TEFC electric motor, 3-phase/50Hz/415V |
| Jockey Controller | Tornatech automatic jockey pump controller |
| Approval | UL Listed & FM Approved |
Diesel engine model/HP and electric motor HP vary by selected pressure rating — see the submittal PDF for your chosen variant for exact figures.
Package Includes
- Fire Pump Set (Diesel & Electric)
- Diesel Engine with fuel tank and direct-reading fuel gauge (SAICORP-UL)
- Electric Motor
- Jockey Pump with TEFC motor
- Diesel, Electric & Jockey automatic controllers (Tornatech)
- Suction & discharge pressure gauges (WIKA)
- Main Pressure Relief Valve & Casing Relief Valve (Cla-Val)
- Air Release Valve (Cla-Val)
Applications
- Commercial Buildings
- Industrial Facilities
- Oil & Gas Plants
- Power Stations
- Warehouses
- Airports & Marine Facilities
- Petrochemical Plants
- Fire Sprinkler & Hydrant Systems
