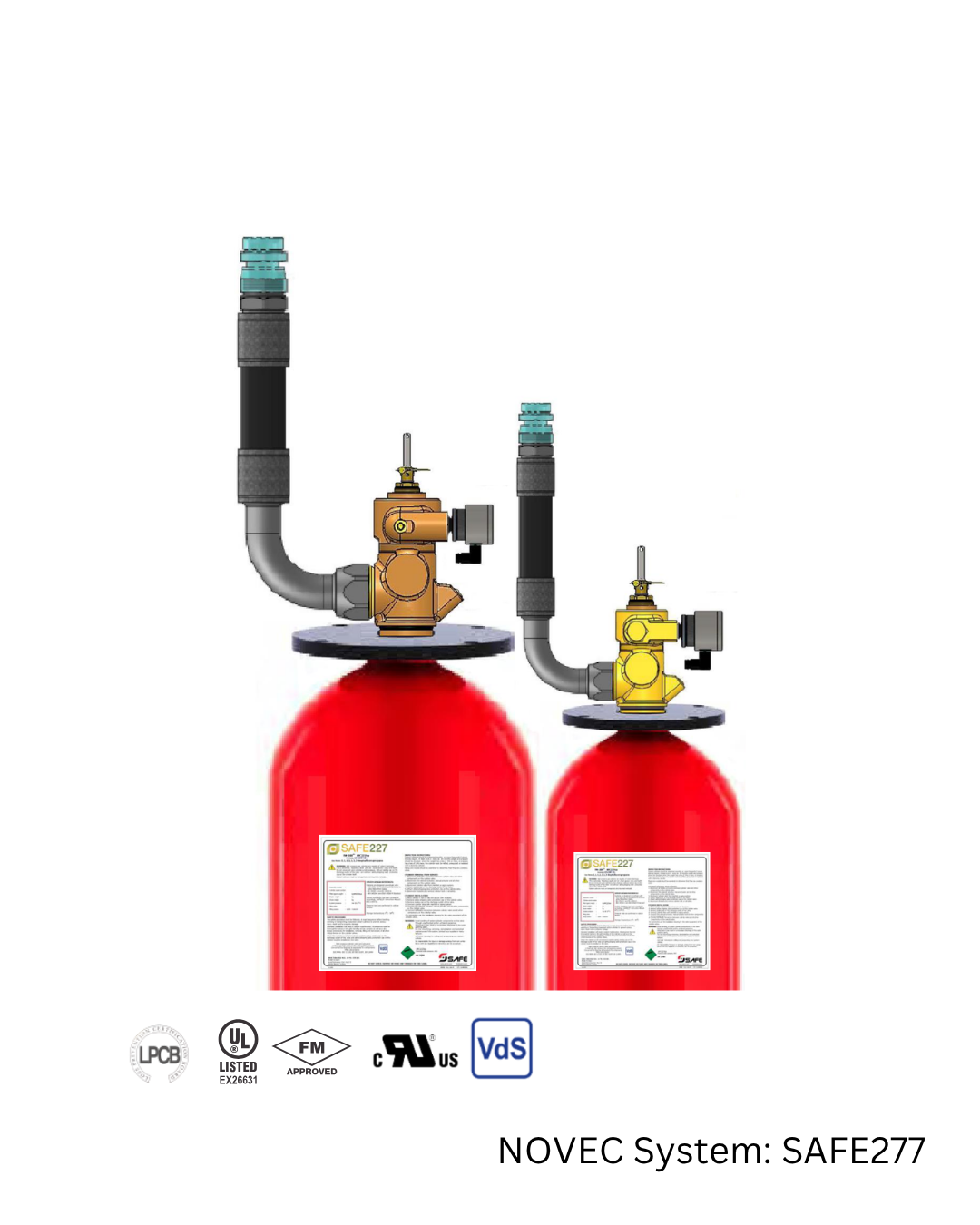

SAFE227 Clean Agent Fire Suppression System (HFC-227ea / FM-200)

SAFE227 Clean Agent Fire Suppression System – HFC-227ea (FM-200)

The SAFE227 System by SAFE Technology Ltd. is a complete, VdS-certified clean agent fire suppression system built around HFC-227ea, widely known by the trade name FM-200. Ready to configure with fully compatible, pre-tested components, the SAFE227 System is available in 42 bar and 50 bar configurations and helps reduce footprint, installation time, and service costs across a wide range of protected spaces.

Why HFC-227ea (FM-200)?

• Colorless, odorless, and electrically non-conductive – leaves no residue after discharge
• Zero ozone depletion potential
• Discharges in a maximum of 10 seconds, extinguishing fire before it can spread
• Approved for use in occupied areas up to 10.5% concentration by volume with a mandated egress time of 5 minutes or less
• Evaluated for cardiac sensitization and classified as acceptable by the US EPA SNAP program for total flooding in occupied spaces with specific limitations

Key System Features

• Cylinder sizes from 14L to 180L in both 42 bar and 50 bar working pressure
• High filling ratio up to 1.2 kg/L – fewer cylinders needed per installation
• 50 bar option allows cylinders to be positioned further from the protected zone
• VdS-approved cylinder valves (SFC 4000204 / 4000210 / 4000220 series) with electromagnetic, manual, manual/pneumatic, and pneumatic release device options
• Complete range of pilot hoses, manifolds, check valves, discharge hoses, and 180°/360° brass discharge nozzles
• Optional monitoring switch and pressure/flow detector switch for system supervision (NFPA 2001 compliant)
• Compliant with CPR (EU) 305/2011, PED 2014/68/EU, and TPED 2010/35/EU

System Components Included

A complete SAFE227 installation is built from agent containers (pressure cylinders), system valves, electromagnetic/manual/pneumatic release devices, pilot hoses and accessories (adapters, non-return valves, vent valves, bleed valves), pressure gauges, discharge hoses, check valves, manifolds with mounting rails, wall mounting rails for cylinders, 180° and 360° discharge nozzles, and full VdS-approved warning/danger labeling.

Ideal Applications

Engine rooms, data centers, server rooms, switchgear and electrical rooms, control rooms, archives, and other high-value or occupied spaces requiring a fast-acting, code-compliant clean agent system.

Available in two system pressures: 42 Bar and 50 Bar, with cylinder sizes from 14L to 180L. Contact us for cylinder size, valve series, and filled/empty configuration options.
