Safeco Fire Search Electrical Cabinet Suppression System — CO2
Safeco Fire Search — Automatic Electrical Cabinet Fire Suppression System (CO2)
Safeco Group's Electrical Cabinet Fire Suppression System is a compact, self-contained automatic fire extinguishing unit designed to protect enclosed electrical and electronic hazard areas — switchgear panels, MCC cabinets, control rooms, server enclosures, and similar installations. A linear thermal-detection tube acts simultaneously as both the fire detection element and the extinguishing agent delivery conduit. Upon flame impingement or rapid heat rise, the tube softens and ruptures at the hottest point, immediately discharging extinguishing agent directly onto the fire source — with no electrical actuation, external power, or control panel required.
How It Works
- Fire ignites inside the protected enclosure
- Detection tube ruptures at the hottest point
- Internal tube pressure drops; cylinder valve opens pneumatically
- Extinguishing agent discharges directly onto the fire through the burst aperture
- Optional low-pressure signal generator activates external alarm/indication
Key Features
- Fully self-contained — no external power required, even during mains failure
- No control panel required — reduces cost and installation complexity
- Pneumatic actuation — no electrical detection circuits, solenoids, or batteries
- Flexible detection tube routing reaches areas inaccessible to point detectors
- Fast response, especially in small enclosed volumes
- Minimal false-discharge risk
- Simple push-fit installation with pre-charged cylinder and wall bracket included
- Optional Low-Pressure Signal Generator (LPSG) for BMS/fire alarm integration
Extinguishing Agent — CO2
| Extinguishing mechanism | Oxygen dilution + cooling |
| Ozone depletion potential | Zero |
| Electrically conductive | No |
| Residue after discharge | None |
| Working cylinder pressure | 17 bar (liquefied) |
| Cylinder color code | Red with white data |
| Suitability for occupied spaces | Requires evacuation (asphyxiation risk) |
| Post-discharge cabinet entry | Only after ventilation |
⚠ CO2 Safety Notice: Carbon dioxide at suppression concentrations is lethal. When installed in or adjacent to normally-occupied spaces, appropriate safety measures — warning signs, pre-discharge alarms, and personnel exclusion procedures — must be implemented per local civil defence and safety regulations.

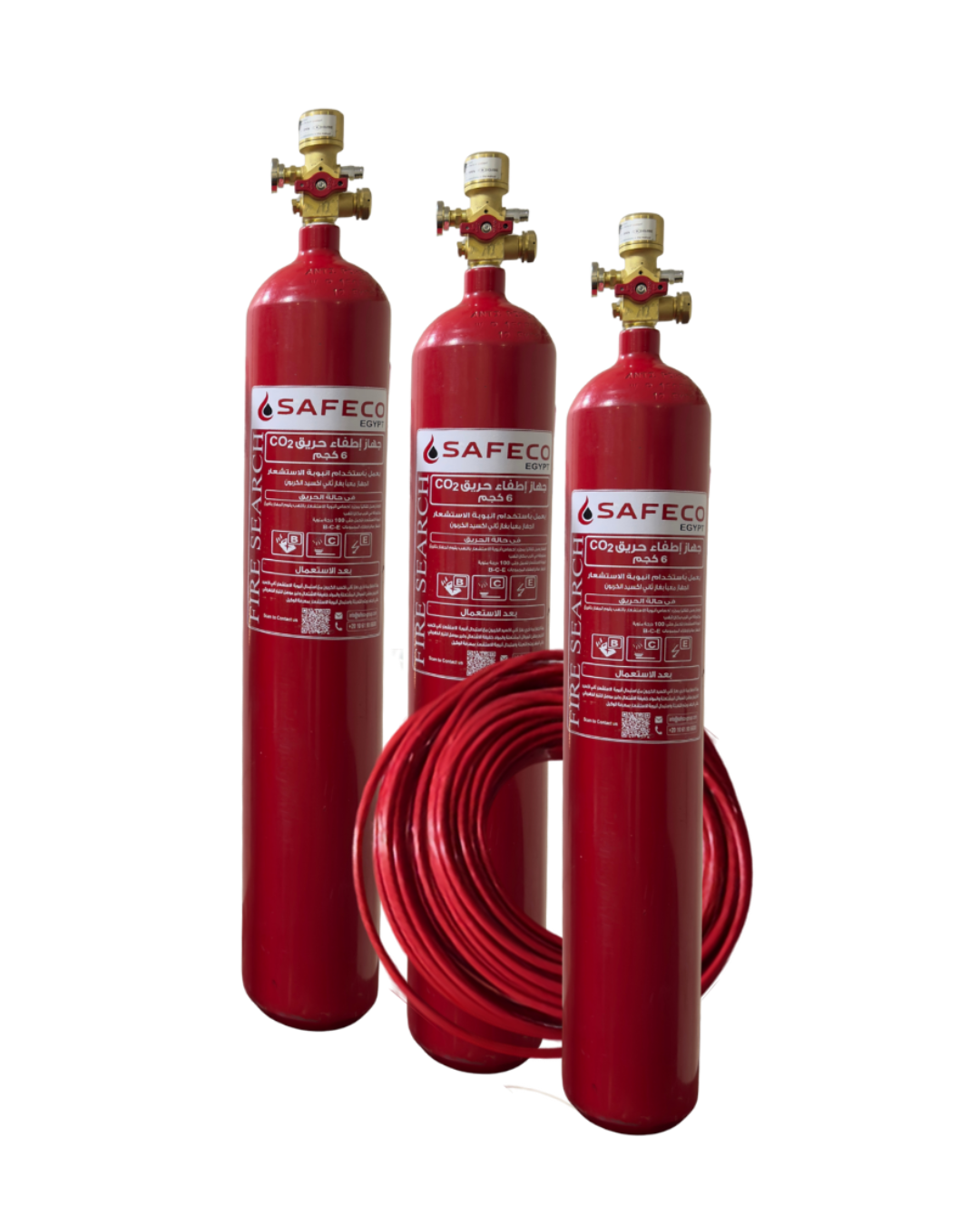

Cylinder Variants Available
| Part No. | Agent Fill | Working Pressure | Tube Length |
|---|---|---|---|
| SAF-C-02 | 2 kg CO2 | 17 bar | 4 m |
| SAF-C-06 | 6 kg CO2 | 17 bar | 6 m |
| SAF-C-10 | 10 kg CO2 | 17 bar | 10 m |
Detection Tube Specifications
| Material | Modified Polyamide (PA), special thermal formulation |
| Dimensions | 4mm inner × 6mm outer diameter |
| Colour | Red |
| Optimal operating temperature | −20°C to 65°C (long-term use) |
| Tube burst temperature | ≥96°C at working pressure |
| Burst pressure | 120 bar at ±20°C (without flame) |
| Working pressure (optimal / max) | 17 bar / 28 bar |
| Minimum bending radius | 100 mm |
| Service life | 5–7 years under normal climatic conditions |
Typical Applications
- Medium/low-voltage switchgear cabinets
- Motor control centres (MCC)
- Server racks and UPS rooms
- Telecommunications equipment rooms
- PLC and SCADA control cabinets
- Data centre sub-floor zones
- Hydraulic power unit enclosures
- Compressor and pump control panels
- Generator control panels
- Transformer and rectifier cubicles
Applicable Standards
- NFPA 12 — Standard on Carbon Dioxide Extinguishing Systems
- NFPA 2001 — Standard on Clean Agent Fire Extinguishing Systems
- EN 3-8 / PED 2014/68/EU — Pressure Equipment Directive
- Egyptian Standard ES 6115/2007
- ISO 9001:2015, ISO 14001:2015, ISO 45001:2018
Warranty: 2 years from date of delivery (manufacturing defects)
