Sanflo Butterfly Valve — Grooved (SFL-BV-300-G)

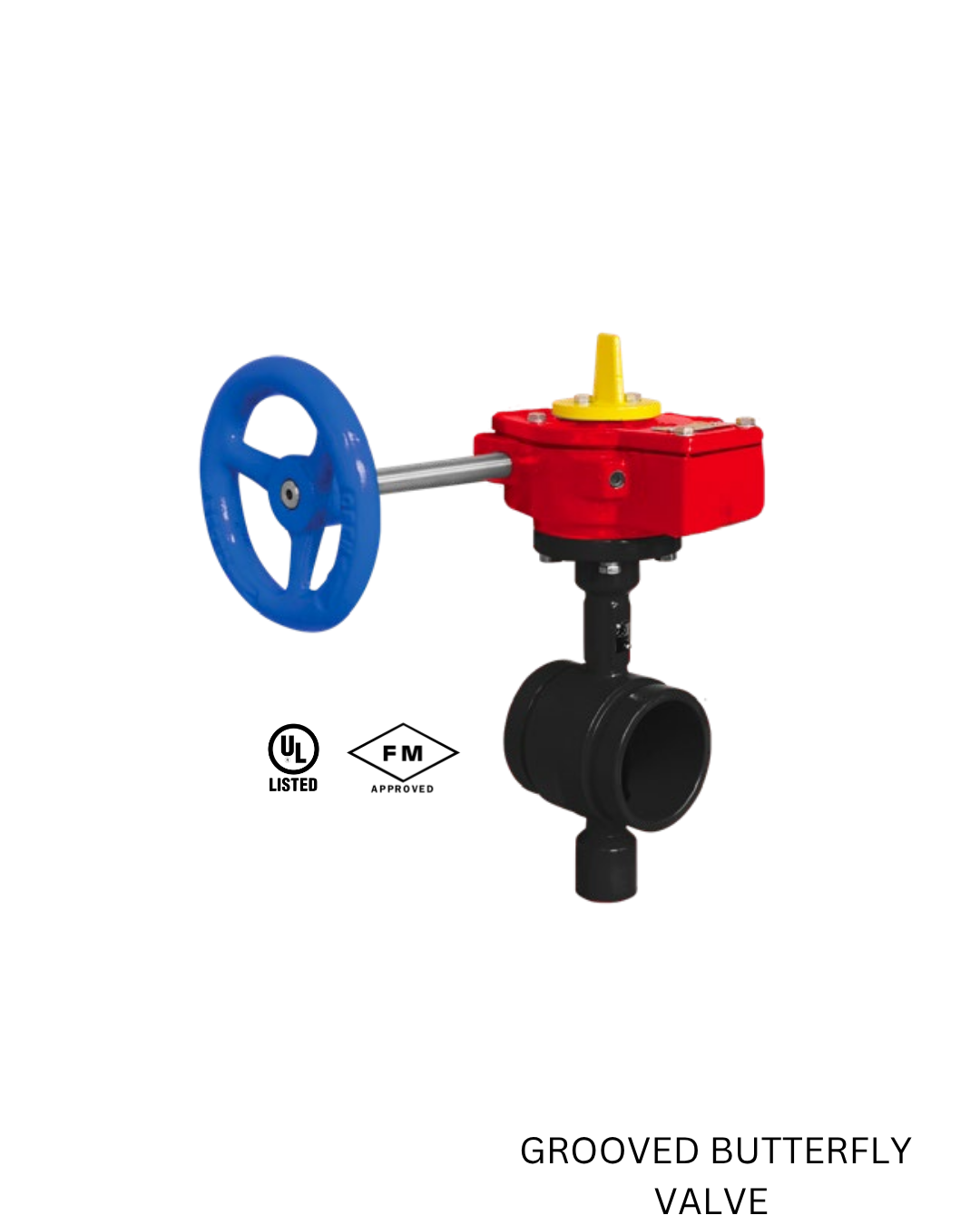

Sanflo Butterfly Valve — Grooved, Gear Operated with Tamper Switch (SFL-BV-300-G)
Sanflo butterfly valves are designed for fire protection services, for use in commercial grooved end piping systems. Butterfly valves are indicating valves designed to isolate or regulate the flow of water, and come with a weatherproof supervisory actuator approved for both indoor and outdoor use.
System Design
Sanflo butterfly valves feature a slow-close gear operator that effectively minimizes harmful water hammer, with minimum flow restriction and pressure loss when fully open. The valve connects to the piping system with approved couplings or flange adapters — flow is possible from either direction and the valve may be positioned in any orientation.
Key Technical Features
- Grooved ends (ANSI / AWWA C606, design standard API 609)
- Approvals: UL, ULC & FM
- Max working pressure: 300 PSI (21 bar)
- Min/max working temperature: 15°F to 250°F (-10°C to 120°C)
- Weatherproof — approved for indoor & outdoor use
- Resilient EPDM coated double-seated disc
- Factory-installed supervisory tamper switch
- Certified lead free to NSF-61 & ANSI-372
- Fusion bonded epoxy coating (AWWA C550)
Sizes Available
2″ (50mm) · 2.5″ (65mm) · 3″ (80mm) · 4″ (100mm) · 6″ (150mm) · 8″ (200mm) · 10″ (250mm) · 12″ (300mm)
Switch & Wiring
- Switch #1 (supervisory circuit): Normally Closed – Red, Normally Open – Yellow, Common – White
- Switch #2 (auxiliary, per authority): Normally Closed – Orange, Normally Open – Blue, Common – Black, Ground – Green
Material Specifications
| Body / Disc / Housing / Handwheel | Ductile Iron, ASTM A-536 |
| Upper & Lower Stems / Worm Gear Shaft | Stainless Steel, AISI 420-SS |
| Shear Pin | Steel, ASTM A510 |
| Gear Segment | Brass, ASTM B584 |
| Housing Gasket / O-Rings | EPDM Grade E |
Model: SFL-BV-300-G
