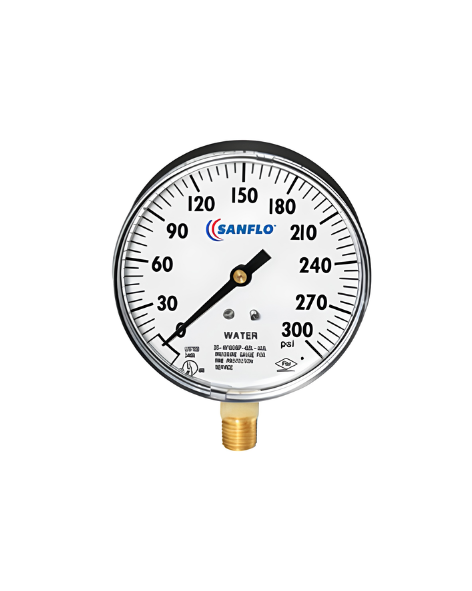

Sanflo Fire Sprinkler Service Gauge (SFL-GAU-300-3.5)
Sanflo Fire Sprinkler Service Gauge (SFL-GAU-300-3.5)
Sanflo's Fire Sprinkler Gauge is designed for both wet and dry sprinkler systems. The 0-300 psi range is applicable to wet systems where water is available directly to the sprinkler head, while the 0-80 retard to 250 psi range is used on dry systems where air pressure exists until system activation. A 0-600 psi gauge is also available for higher pressure systems.
Key Technical Features
- Approvals: UL/ULC & FM
- Corrosion resistant ABS case (polycarbonate blend)
- Bourdon tube: "C" shaped bronze
- Ranges: Single, Dual, or Triple Scale — 0-300 psi (water) / 0-80 retard to 250 psi (air) / 0-600 psi
- Heat-resistant polycarbonate push-in window
- Dial and pointer: Black
- Accuracy: ASME B40.100, Grade B (±3-2-3% of span)
- Socket: Brass
- Dial size: 3.5″ · Connection: ¼″ NPT lower
- Operating temperature: -40°F to 150°F (-40°C to 65°C)
Dimensions
3.5″ dial: 94mm (A) × 29mm (B) × 69mm (C) × 92mm (D) × 11.9mm (E) · Weight: 5.36 oz (15.9g)
Model: SFL-GAU-300-3.5
