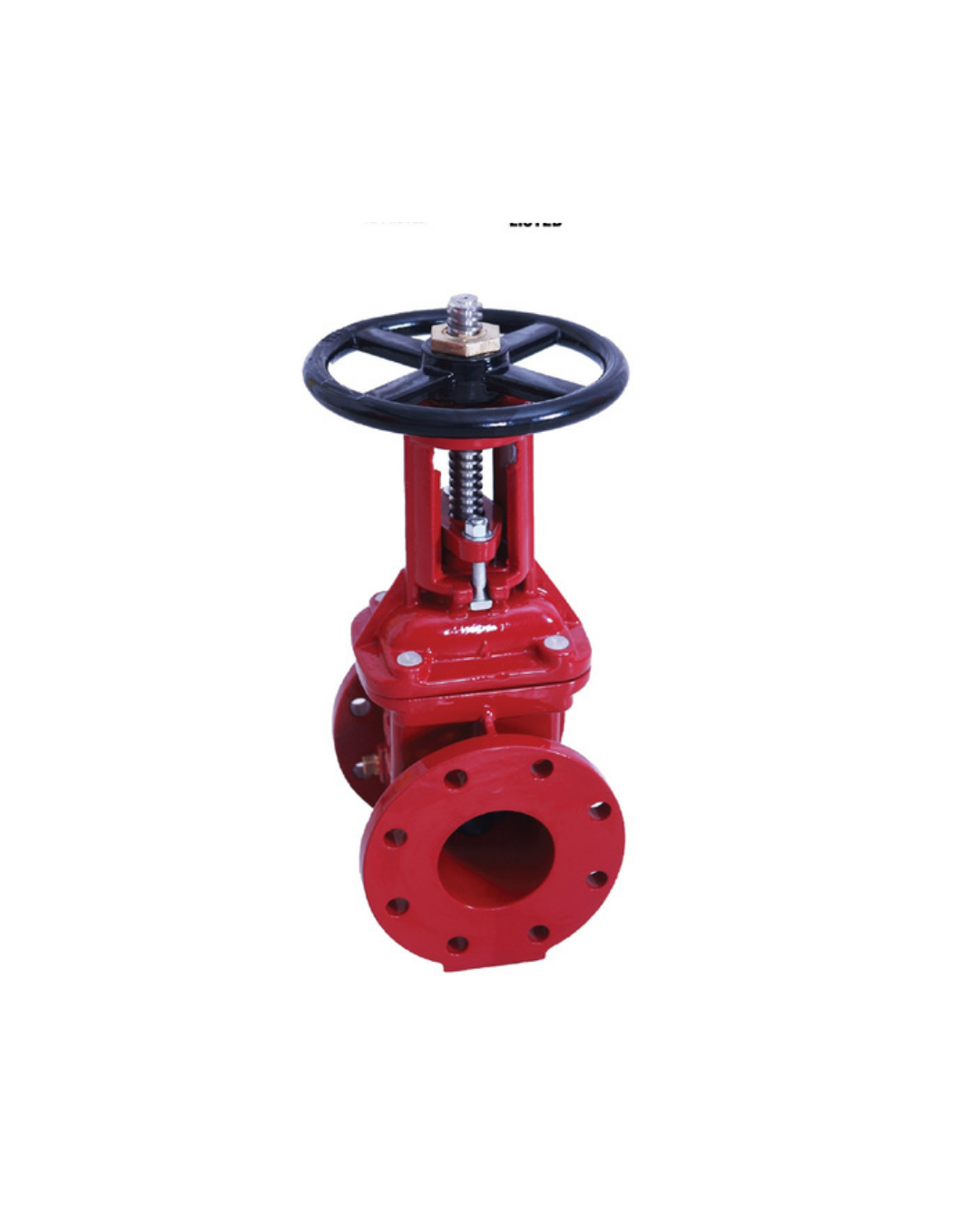

Sanflo OS&Y Gate Valve — Flanged (SFL-OSY-300-F)
Sanflo OS&Y Gate Valve — Flanged (SFL-OSY-300-F)
Sanflo OS&Y valves (Outside Screw & Yoke) are designed for use in fire protection services. OS&Y valves control the flow of water in an on or off position. The rising stem is fixed to the gate and lowers as the valve is operated, providing a visual indication of the on or off position.
Key Technical Features
- Flange x Flange end connections (ASME B16.1)
- Approvals: UL, ULC & FM
- Max working pressure: 300 PSI (21 bar)
- Max testing pressure: 600 PSI (42 bar)
- Min/max working temperature: 15°F to 176°F (-10°C to 80°C)
- Certified lead free to NSF-61 & ANSI-372
- Fusion bonded epoxy interior & exterior coating (AWWA C550)
- Stainless steel stem, NPT plug
Sizes Available
2.5″ (65mm) · 3″ (80mm) · 4″ (100mm) · 6″ (150mm) · 8″ (200mm) · 10″ (250mm) · 12″ (300mm)
Optional End Connections
- Groove x Groove — Model SFL-OSY-300-G
- Flange x Groove — Model SFL-OSY-300-FG
Material Specifications
| Body / Wedge / Bonnet / Gland | Ductile Iron, A536 65-45-12 |
| Stem | Stainless Steel, AISI 420 |
| Wedge Nut | Stainless Steel, AISI 304 |
| Yoke Nut | Bronze, B62 C83600 |
| Gasket | Rubber, EPDM |
| Packing | Graphite |
| Hand Wheel | Malleable Iron |
Model: SFL-OSY-300-F
