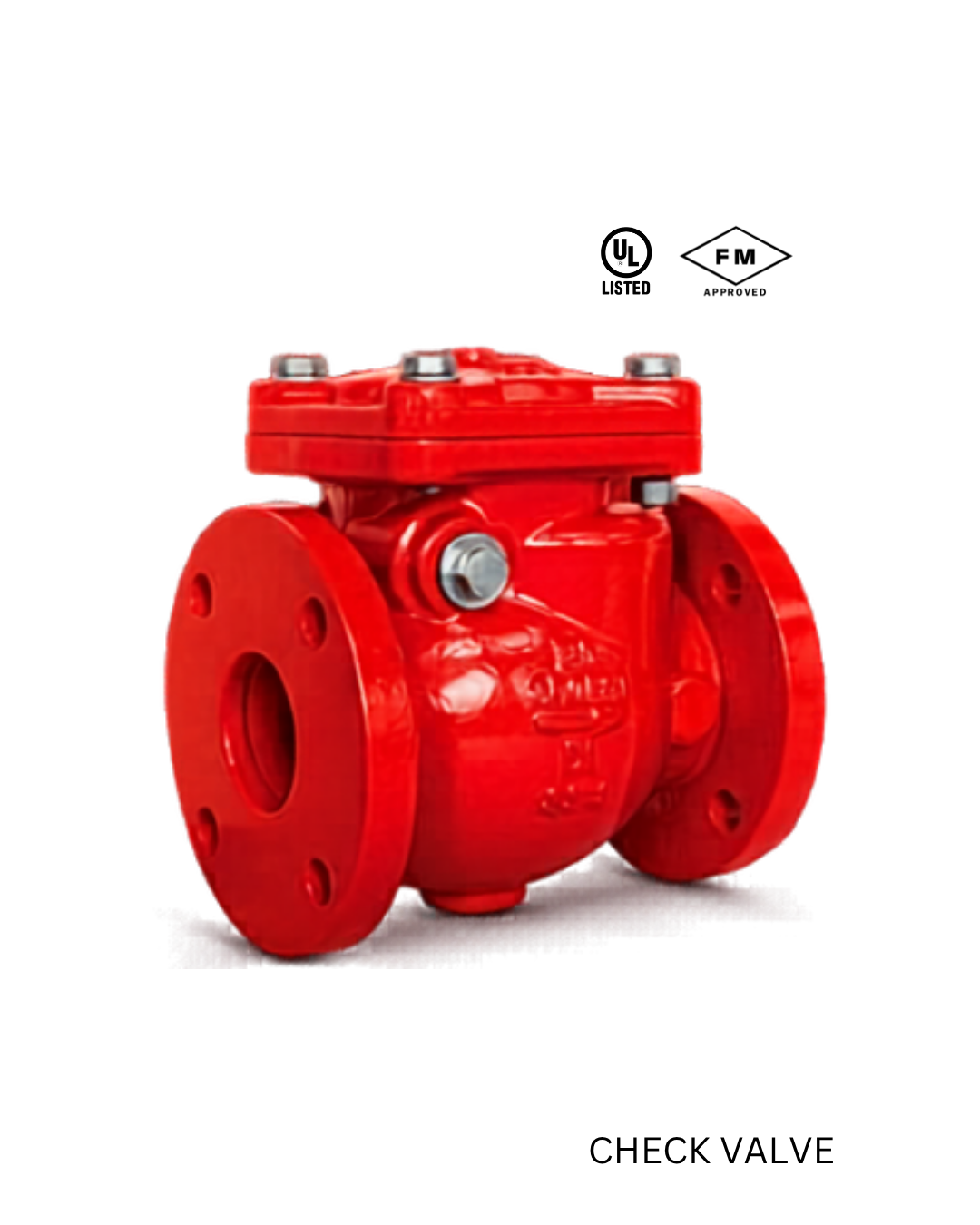

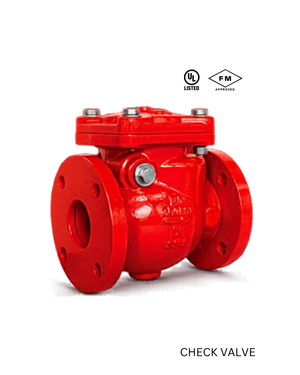

Sanflo Swing Check Valve — Grooved (SFL-SC-350-G)
Sanflo Swing Check Valve — Grooved (SFL-SC-350-G)
Sanflo Swing Check Valves are designed for fire protection services, primarily in commercial grooved end pipe connections. Also referred to as non-return, retention, or one-way valves, a check valve only allows water to flow in one direction. A spring-loaded swing-type clapper inside the valve prevents water from flowing in reverse. Can be installed vertically (upward flow only) or horizontally.
Key Technical Features
- Grooved ends — ASTM A126 Class B Rating (AWWA C606)
- Approvals: UL & FM
- Max working pressure: 350 PSI (24 bar)
- Max testing pressure: 700 PSI (48 bar)
- Min/max working temperature: 32°F to 212°F (0°C to 100°C)
- Includes two test plugs
- Certified lead free to NSF-61 & ANSI-372
- Fusion bonded epoxy interior & exterior coating
Sizes Available
2″ (50mm) · 2.5″ (65mm) · 3″ (80mm) · 4″ (100mm) · 6″ (150mm) · 8″ (200mm) · 10″ (250mm) · 12″ (300mm)
Optional End Connections
- Flange x Flange — Model SFL-SC-350-F
- Flange x Groove — Model SFL-SC-350-FG
- Groove x Flange — Model SFL-SC-350-GF
Material Specifications
| Body | Ductile Iron, A536 65-45-12 |
| Hinge Pin / Torsion Spring / Lock Nut / Clapper Facing Disc / 0.5 NPT Plug | Stainless Steel, AISI 304 |
| Seat Ring | Brass, C95400 |
| Gasket / Clapper | Rubber, EPDM |
| Bolt | Stainless Steel, AISI 316 |
Model: SFL-SC-350-G
